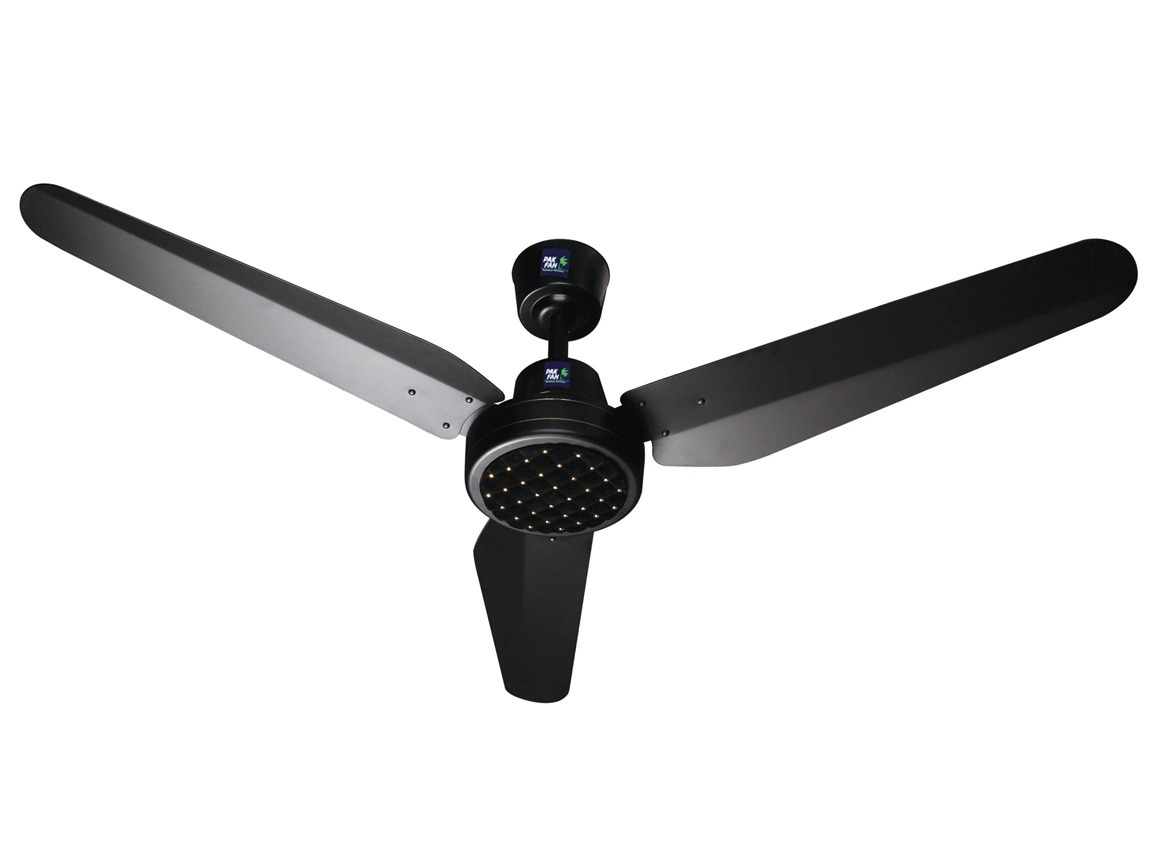

Floral Eco Max

Voir la vidéo
  • Max consumption 30 Watt
  • WARRANTY : 5 years PCB + 5 years motor
  • 99.9% Copper Wire
  • BLDC Motor
  • Comes with a remote
See more
Color :
Size
56"
Style
s01
Why Pak Fans 30 Watt
Energy Saving
99.9% Copper Wire
Inverter
Electric Steel Sheet
BLDC
High Power Factor
ESC Technology
Wireless Remote
Max Air Delivery
High Quality PCB
Noiseless Performance
UPS Performance
High RPM
Warranty

Company will provide 5 years PCB and 5 years motor warranty.

IMPORTANT: This fan must not be used with a dimmer. Using with dimmer will void all warranties.

Instructions

WARNING:

BE SURE TO SHUT OFF ELECTRICAL SUPPLY AT CIRCUIT BREAKER BEFORE INSTALLATION.

INSTALLATION MUST BE DONE BY QUALIFIED ELECTRICIAN ONLY.

DO NOT ATTEMPT TO INSTALL THE UNIT YOURSELF.

DO NOT USE WITH A DIMMER. ( IMPORTANT: using with a dimmer will void the warranty )



CAUTION:

  1. Improper installation may result in risk of fire, electrical shock or injury to persons.
  2. Be sure the fan is to be connected with grounded outlet box.
  3. Its ESSENTIAL that blades be NO LESS THAN 2.3 meters from the floor and that adequate clearance exists between the fan and adjacent walls, furnishings etc.
  4. If the fan is operating abnormally, cut the power off immediately for inspection.
  5. T indicates suitable for tropical climates.
  6. Ta-Ambient temperature 45 C.
  7. Children should be supervised to ensure that they do not play with the appliances.



CLEANING:

Disconnect the electrical supply for safety purpose. Use a cloth with a neutral cleaning agent to clean the fan. Then wipe it with dry cloth. DO NOT IMMERSE MOTOR HEAD IN WATER.



Technical Specs

AC 220V - Specifications

Model Name Size Rated Voltage Frequency Power Speed Insulation Class Power Factor Current Air delivery Tropical Climate
mm V~ Hz Watt RPM Amp. ㎥/Min
ALL MODELS 1400 220 50 30 <= 350 F(155) 0.98 0.14 236 T
